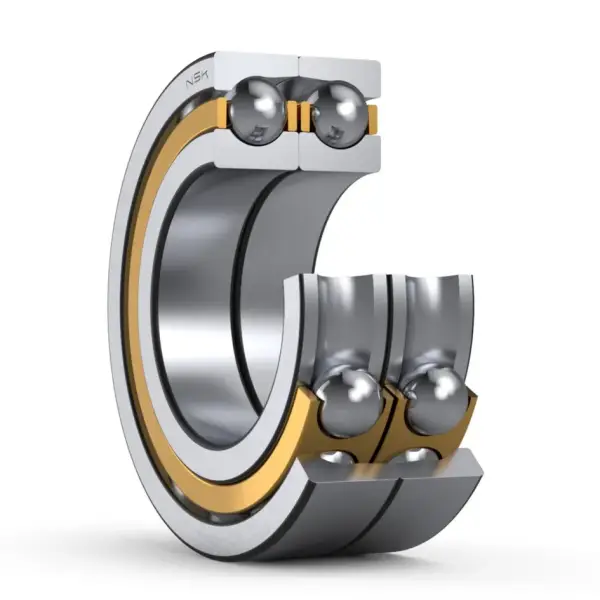

NSK 7322ADF
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7322ADF
Boundary Dimensions
d
110
mm
Bore diameter
D
240
mm
Outside diameter
2B
100
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
395000
N
Basic dynamic load rating
C0r
430000
N
Basic static load rating
Speeds
Grease
2000
min-1
Grease lubrication
Oil (Oil-bath)
2600
min-1
Oil-bath lubrication
a0
51
mm
Load center spacings
Dimensions
rb (max.)
2.5
mm
Radius of fillet
Da (max.)
226
mm
Diameter of housing abutment
db (min.)
124
mm
Diameter of shaft abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
