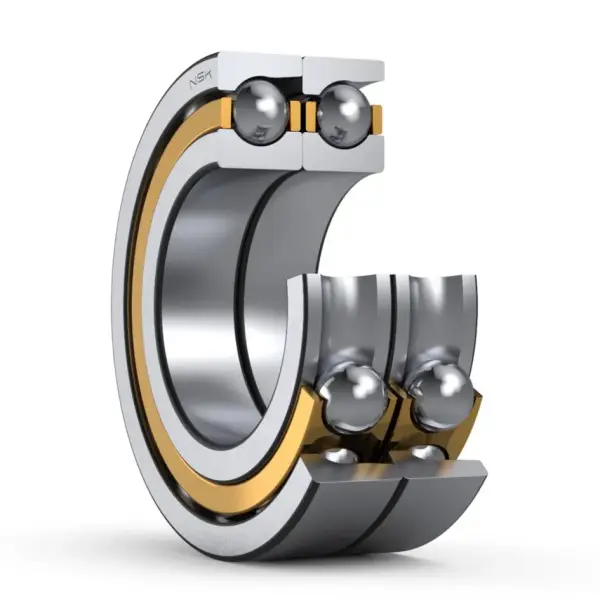

NSK 7322BDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7322BDT
Boundary Dimensions
d
110
mm
Bore diameter
D
240
mm
Outside diameter
2B
100
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
360000
N
Basic dynamic load rating
C0r
395000
N
Basic static load rating
Speeds
Grease
1800
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
da (min.)
124
mm
Diameter of shaft abutment
Da (max.)
226
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
22.4
kg
Mass approx.
