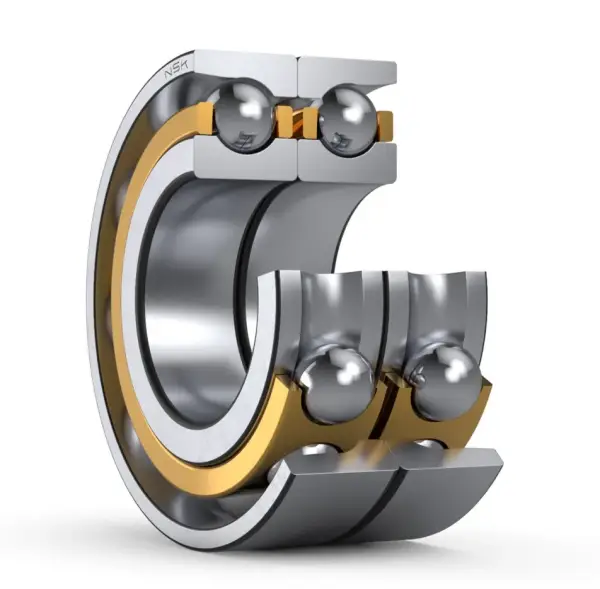

NSK 7324BDB
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7324BDB
Boundary Dimensions
d
120
mm
Bore diameter
D
260
mm
Outside diameter
2B
110
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
400000
N
Basic dynamic load rating
C0r
460000
N
Basic static load rating
Speeds
Grease
1600
min-1
Grease lubrication
Oil (Oil-bath)
2200
min-1
Oil-bath lubrication
a0
214.4
mm
Load center spacings
Dimensions
da (min.)
134
mm
Diameter of shaft abutment
rb (max.)
1
mm
Radius of fillet
Db (max.)
253
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
