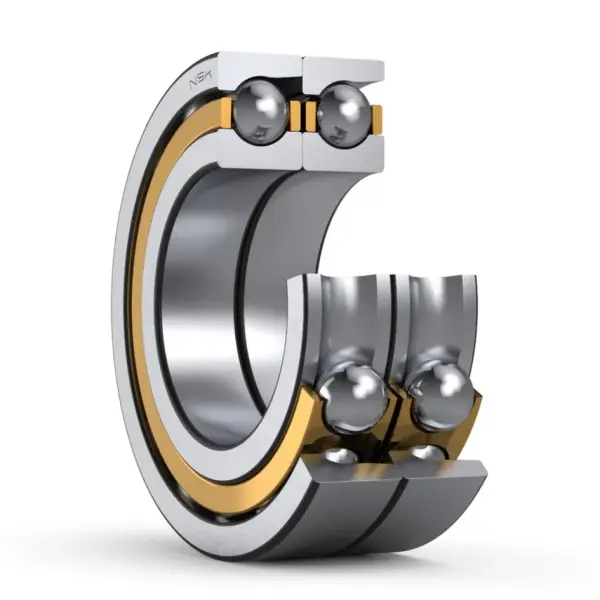

NSK 7324BDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7324BDT
Boundary Dimensions
d
120
mm
Bore diameter
D
260
mm
Outside diameter
2B
110
mm
Width 2B
r (min.)
3
mm
Chamfer dimension
r1 (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
400000
N
Basic dynamic load rating
C0r
460000
N
Basic static load rating
Speeds
Grease
1600
min-1
Grease lubrication
Oil (Oil-bath)
2200
min-1
Oil-bath lubrication
da (min.)
134
mm
Diameter of shaft abutment
Da (max.)
246
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
28.8
kg
Mass approx.
