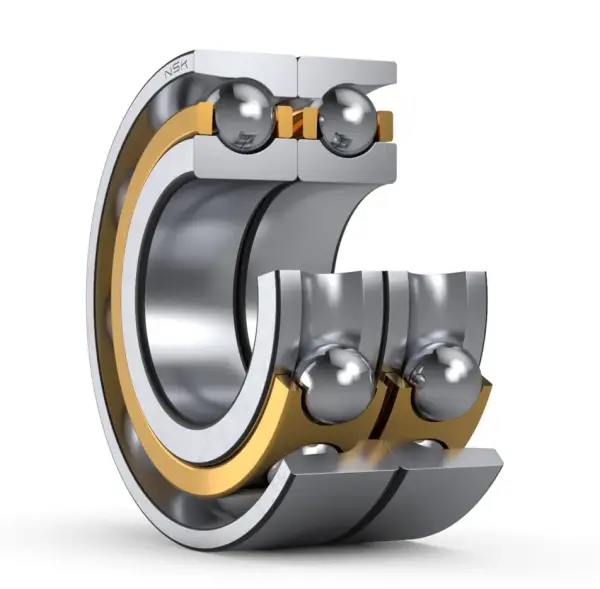

NSK 7326ADB
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7326ADB
Boundary Dimensions
d
130
mm
Bore diameter
D
280
mm
Outside diameter
2B
116
mm
Width 2B
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
490000
N
Basic dynamic load rating
C0r
585000
N
Basic static load rating
Speeds
Grease
1700
min-1
Grease lubrication
Oil (Oil-bath)
2200
min-1
Oil-bath lubrication
a0
176.3
mm
Load center spacings
Dimensions
da (min.)
148
mm
Diameter of shaft abutment
rb (max.)
1.5
mm
Radius of fillet
Db (max.)
271
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
