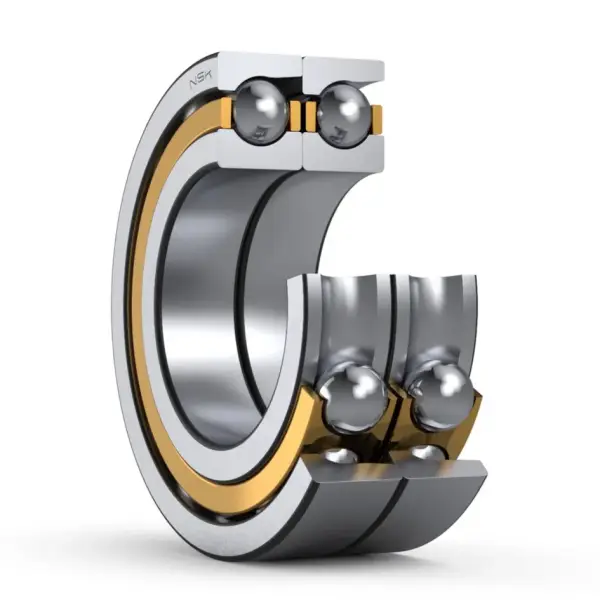

NSK 7326BDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7326BDT
Boundary Dimensions
d
130
mm
Bore diameter
D
280
mm
Outside diameter
2B
116
mm
Width 2B
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
445000
N
Basic dynamic load rating
C0r
535000
N
Basic static load rating
Speeds
Grease
1500
min-1
Grease lubrication
Oil (Oil-bath)
2000
min-1
Oil-bath lubrication
da (min.)
148
mm
Diameter of shaft abutment
Da (max.)
262
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
35.2
kg
Mass approx.
