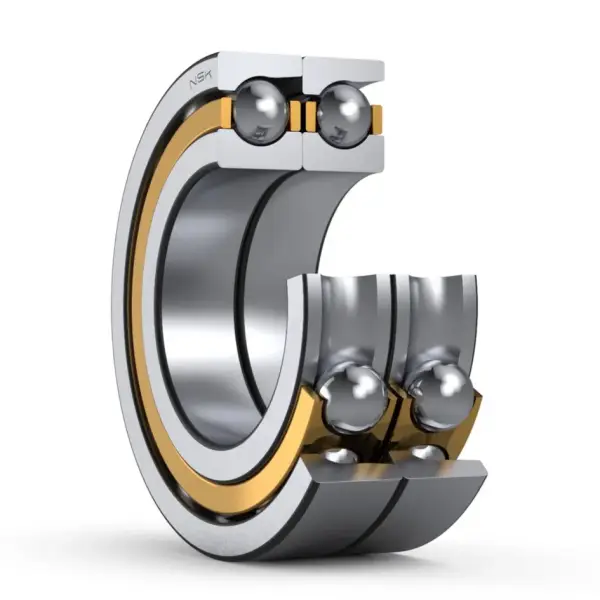

NSK 7328BDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7328BDT
Boundary Dimensions
d
140
mm
Bore diameter
D
300
mm
Outside diameter
2B
124
mm
Width 2B
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
490000
N
Basic dynamic load rating
C0r
615000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1900
min-1
Oil-bath lubrication
da (min.)
158
mm
Diameter of shaft abutment
Da (max.)
282
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
43.2
kg
Mass approx.
