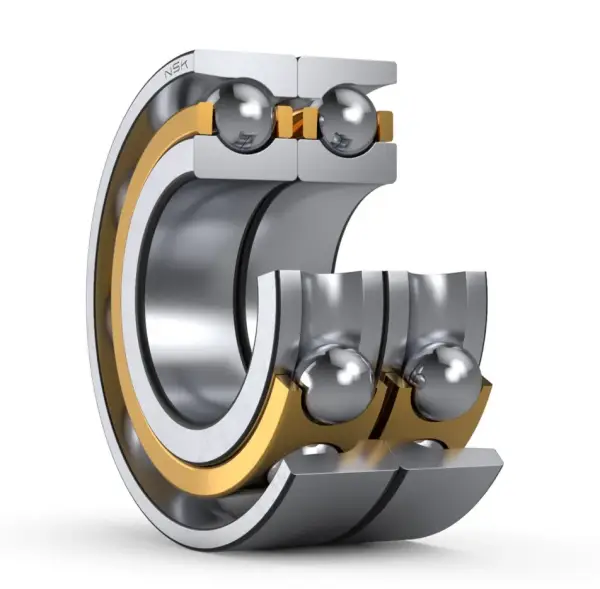

NSK 7332ADB
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
7332ADB
Boundary Dimensions
d
160
mm
Bore diameter
D
340
mm
Outside diameter
2B
136
mm
Width 2B
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
620000
N
Basic dynamic load rating
C0r
845000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1800
min-1
Oil-bath lubrication
a0
212.3
mm
Load center spacings
Dimensions
da (min.)
178
mm
Diameter of shaft abutment
rb (max.)
1.5
mm
Radius of fillet
Db (max.)
331
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
