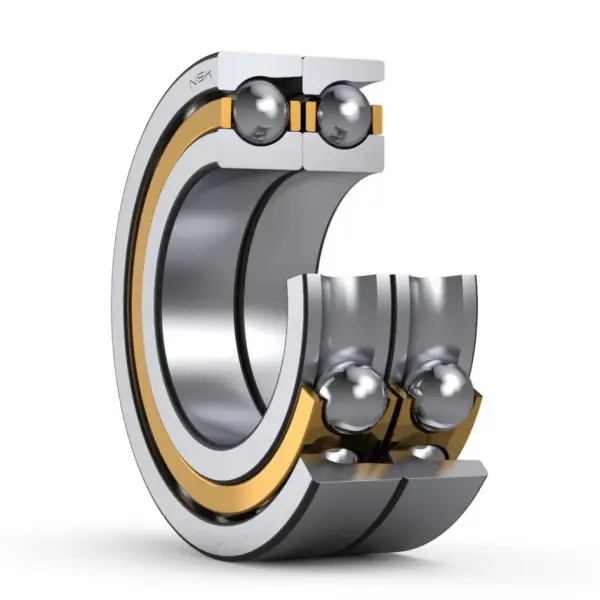

NSK 7332ADT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7332ADT
Boundary Dimensions
d
160
mm
Bore diameter
D
340
mm
Outside diameter
2B
136
mm
Width 2B
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
620000
N
Basic dynamic load rating
C0r
845000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1800
min-1
Oil-bath lubrication
da (min.)
178
mm
Diameter of shaft abutment
Da (max.)
322
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
61.4
kg
Mass approx.
