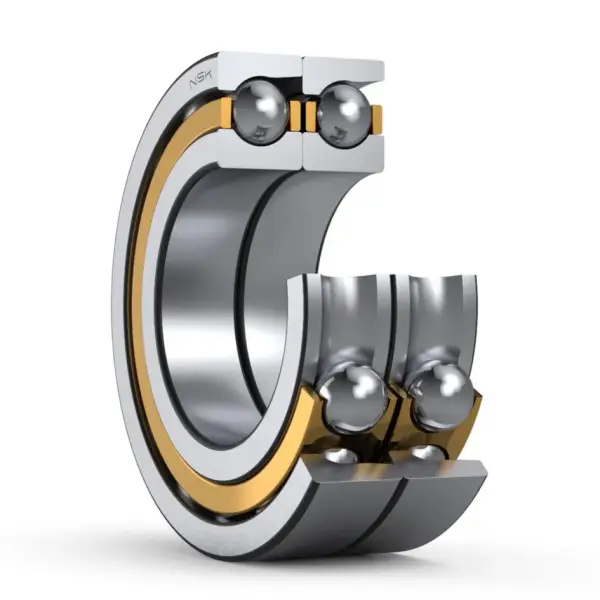

NSK 7334BDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7334BDT
Boundary Dimensions
d
170
mm
Bore diameter
D
360
mm
Outside diameter
2B
144
mm
Width 2B
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
635000
N
Basic dynamic load rating
C0r
890000
N
Basic static load rating
Speeds
Grease
1100
min-1
Grease lubrication
Oil (Oil-bath)
1600
min-1
Oil-bath lubrication
da (min.)
188
mm
Diameter of shaft abutment
Da (max.)
342
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
71.2
kg
Mass approx.
