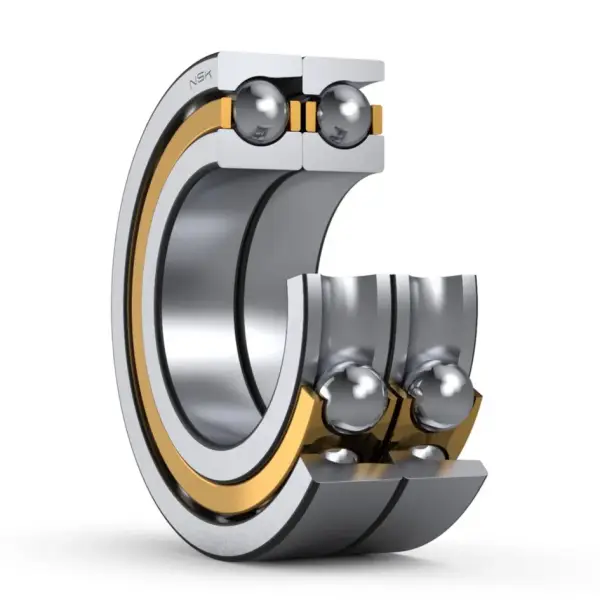

NSK 7336ADT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7336ADT
Boundary Dimensions
d
180
mm
Bore diameter
D
380
mm
Outside diameter
2B
150
mm
Width 2B
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
730000
N
Basic dynamic load rating
C0r
1070000
N
Basic static load rating
Speeds
Grease
1200
min-1
Grease lubrication
Oil (Oil-bath)
1600
min-1
Oil-bath lubrication
da (min.)
198
mm
Diameter of shaft abutment
Da (max.)
362
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
84.2
kg
Mass approx.
