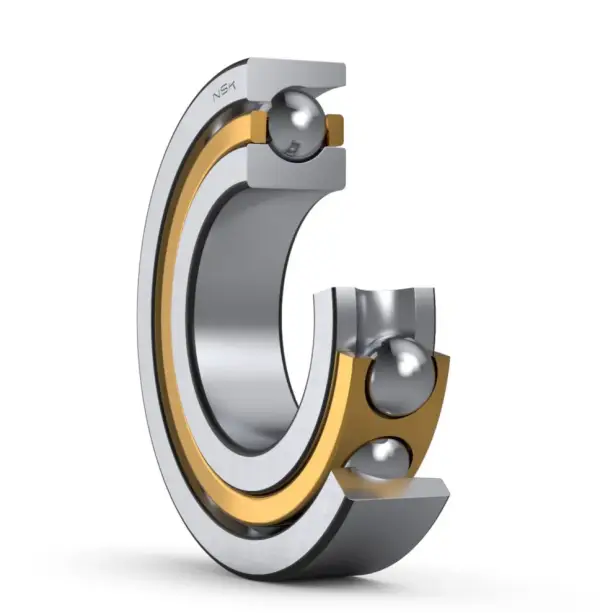

NSK 7338A
Single-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7338A
Boundary Dimensions
d
190
mm
Bore diameter
D
400
mm
Outside diameter
B
78
mm
Width
r (min.)
5
mm
Chamfer dimension
r1 (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
495000
N
Basic dynamic load rating
C0r
600000
N
Basic static load rating
Speeds
Grease
1400
min-1
Grease lubrication
Oil (Oil-bath)
1900
min-1
Oil-bath lubrication
a
124.2
mm
Effective load center
Dimensions
da (min.)
212
mm
Diameter of shaft abutment
Da (max.)
378
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
