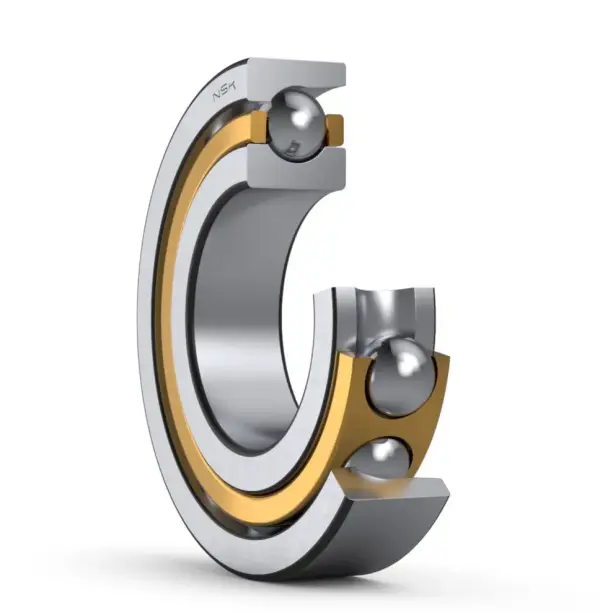

NSK 7340B
Single-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7340B
Boundary Dimensions
d
200
mm
Bore diameter
D
420
mm
Outside diameter
B
80
mm
Width
r (min.)
5
mm
Chamfer dimension
r1 (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
475000
N
Basic dynamic load rating
C0r
600000
N
Basic static load rating
Speeds
Grease
1200
min-1
Grease lubrication
Oil (Oil-bath)
1600
min-1
Oil-bath lubrication
a
170.1
mm
Effective load center
Dimensions
da (min.)
222
mm
Diameter of shaft abutment
Da (max.)
398
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
