NSK 85TMP11

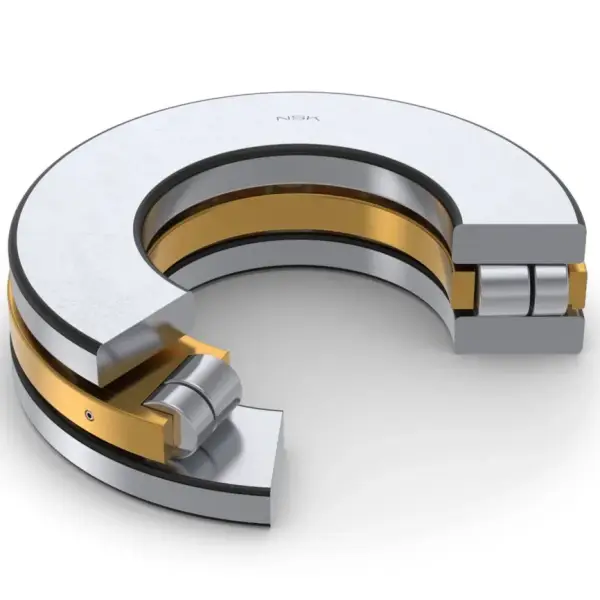

Thrust Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
85TMP11

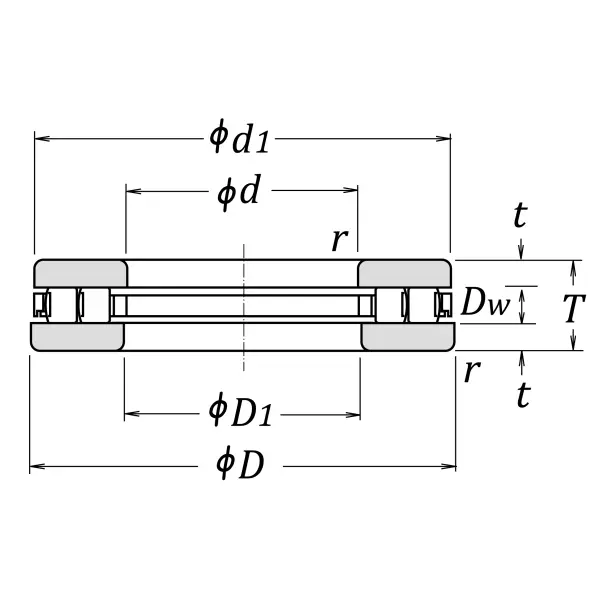

Boundary Dimensions
d
85
mm
Bore diameter
D
110
mm
Outside diameter
T,T3
19
mm
Height
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Ca
75000
N
Basic dynamic load rating
C0a
298000
N
Basic static load rating
Speeds
Grease
1100
min-1
Grease lubrication
Oil (Oil-bath)
3200
min-1
Oil-bath lubrication
Dw
7.5
mm
t
5.75
mm
Height shaft washer
d1
110
mm
Outside diameter shaft washer
D1
87
mm
Inner diameter housing washer

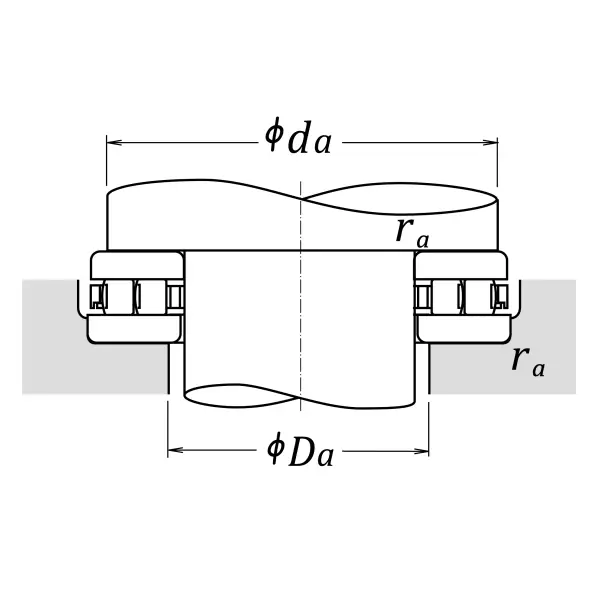

Dimensions
da (min.)
105
mm
Diameter of shaft abutment
Da (max.)
89
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
