NSK 85TMP12

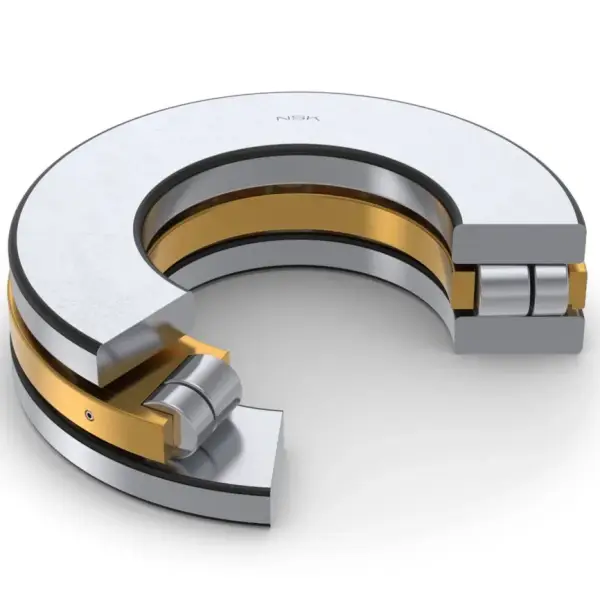

Thrust Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
85TMP12

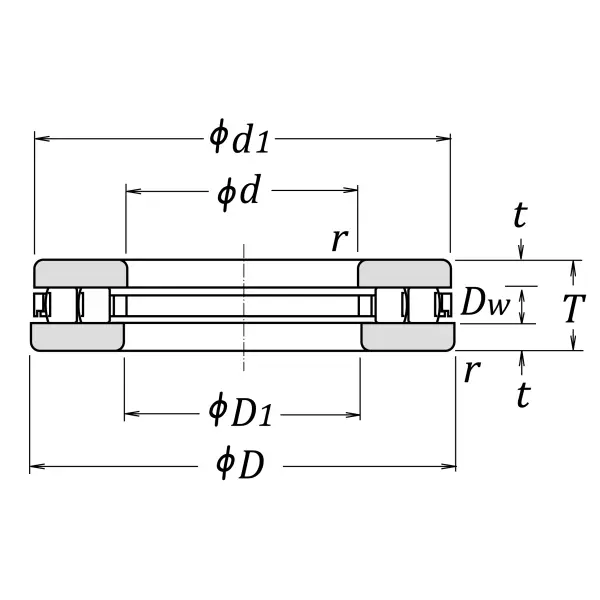

Boundary Dimensions
d
85
mm
Bore diameter
D
125
mm
Outside diameter
T,T3
31
mm
Height
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Ca
151000
N
Basic dynamic load rating
C0a
485000
N
Basic static load rating
Speeds
Grease
800
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication
Dw
14
mm
t
8.5
mm
Height shaft washer
d1
125
mm
Outside diameter shaft washer
D1
87
mm
Inner diameter housing washer

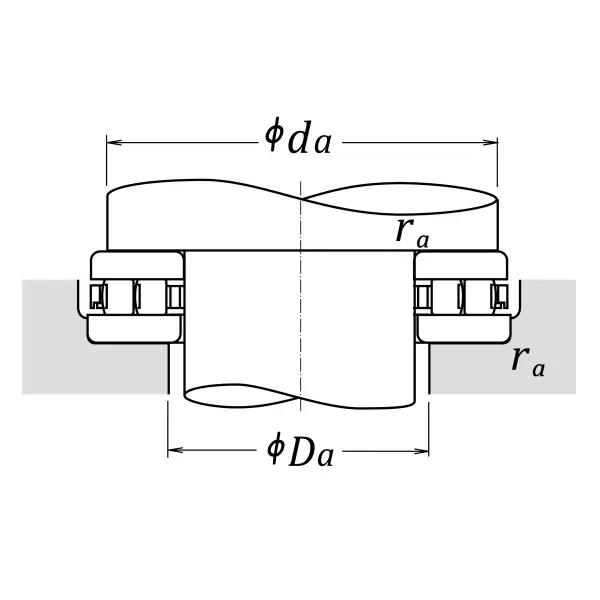

Dimensions
da (min.)
118
mm
Diameter of shaft abutment
Da (max.)
92
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
