NSK 95BER19X
ROBUST Series Ultra High-Speed Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
95BER19X

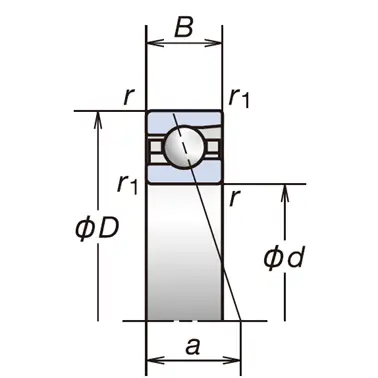

Boundary Dimensions
BER: 25°
Bearing Type
d
95
mm
Bore diameter
D
130
mm
Outside diameter
B
18
mm
Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Cr
61.0
kN
Basic Dynamic Load Rating
C0r
28.5
kN
Basic Static Load Rating
Speeds
Grease
16900
min-1
Limiting Speed
Oil (Oil-air)
26700
min-1
Limiting Speed
Dimensions
25°
Contact Angle
a
35.2
mm
Effective Load Center

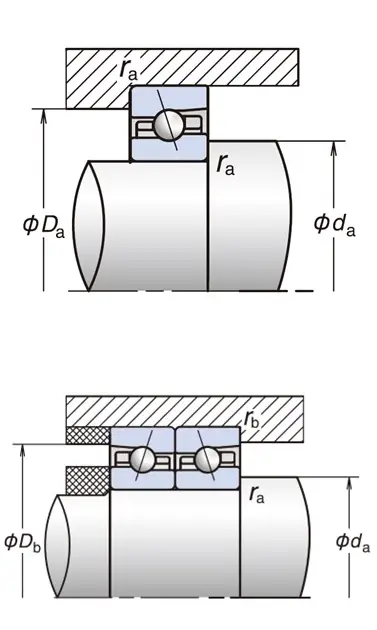

Abutment and Fillet Dimensions
da(min.)
102
mm
Diameter of Shaft Abutment
Da(max.)
123
mm
Diameter of Housing Abutment
Db(max.)
125
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
