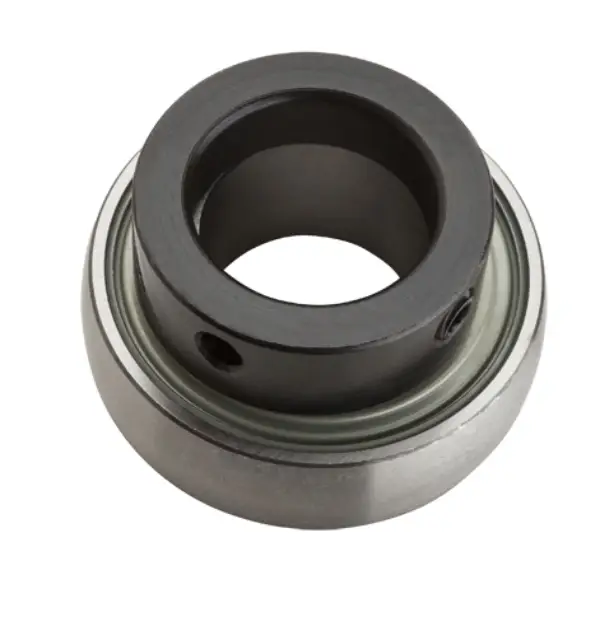

NSK AEL202
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AEL202
Included products
Bearing

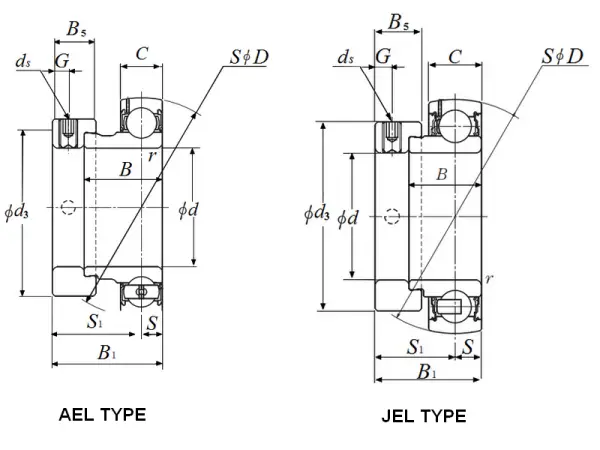

Nominal Dimensions
d
15
mm
Bore diameter
D
40
mm
Outside diameter
B1
28.6
mm
Overall bearing width
B,B4
19
mm
Width of inner ring
C
12
mm
Outer ring width
r(min.)
0.6
mm
Chamfer dimension
S1
22.1
mm
Distance from locking device side face to raceway centre
G
4.8
mm
Distance face to thread centre
ds
M 6×0.75
Set screw
d3
29
mm
Outside diameter of locking collar
B5
13.6
mm
Width of locking collar
Basic Load Ratings
Cr
9.6
kN
Basic dynamic load rating
C0r
4.6
kN
Basic static load rating
Mass
Mass approx.
0.11
kg
Mass approx.
