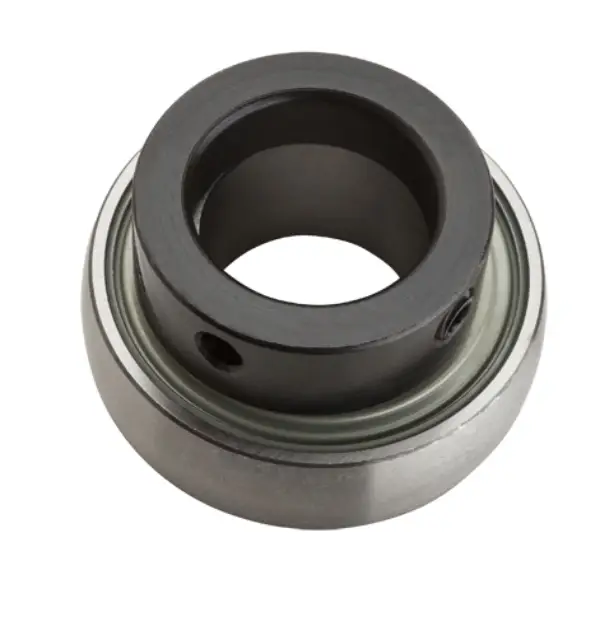

NSK AEL204
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AEL204
Included products
Bearing

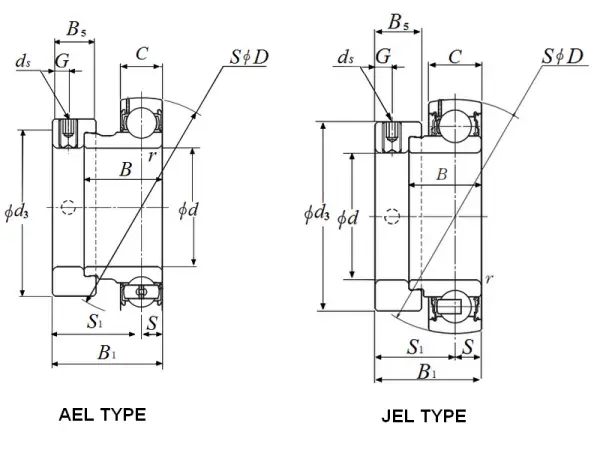

Nominal Dimensions
d
20
mm
Bore diameter
D
47
mm
Outside diameter
B1
31
mm
Overall bearing width
B,B4
21.5
mm
Width of inner ring
C
14
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
S1
23.5
mm
Distance from locking device side face to raceway centre
G
4.8
mm
Distance face to thread centre
ds
M 6×0.75
Set screw
d3
33
mm
Outside diameter of locking collar
B5
13.5
mm
Width of locking collar
Basic Load Ratings
Cr
12.8
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
Mass
Mass approx.
0.17
kg
Mass approx.
