NSK AELPB205
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
AELPB205
Included products
Bearing
Housing
PB205
Housing

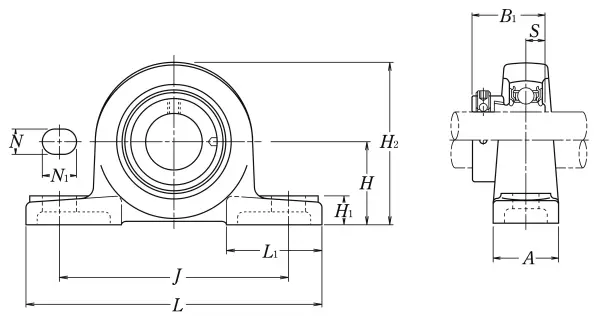

Nominal Dimensions
d
25
mm
Bore diameter
N1
16
mm
Length of attachment bolt hole
L
130
mm
Overall length
H
36.5
mm
Height of spherical seat centre
J
100
mm
Distance between attachment bolts
N
11
mm
Diameter of attachment bolt hole
A
29
mm
Base width
H1
13
mm
Distance between bottoms of piloting grooves
B1
31
mm
Width of inner ring
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
L1
42
mm
Foot width
H2
71
mm
Overall height
Mounting information
G
M 8
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.7
kg
Mass approx.
