NSK AELPFL203
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AELPFL203
Included products
Bearing
Housing
PFL203
Housing

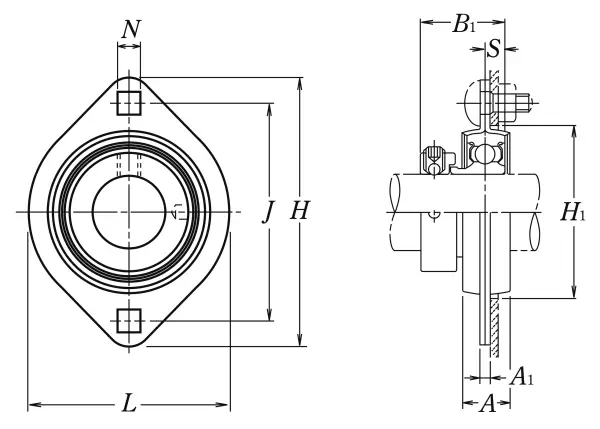

Nominal Dimensions
d
17
mm
Bore diameter
L,L1
59
mm
Overall height
H
81
mm
Height of spherical seat centre
J
63.5
mm
Distance between attachment bolts
N
7.1
mm
Diameter of attachment bolt hole
A1
4
mm
Flange width
A
14
mm
Base width
B,B1,B2
28.6
mm
Width of inner ring
H1
49
mm
Abutment diameter
S
6.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M 6
Bolt size
Permissible housing load
CR
2.7
kN
Radial
Basic Load Ratings
Cr
9.6
kN
Basic dynamic load rating
C0r
4.6
kN
Basic static load rating
