NSK AELPFL205
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AELPFL205
Included products
Bearing
Housing
PFL205
Housing

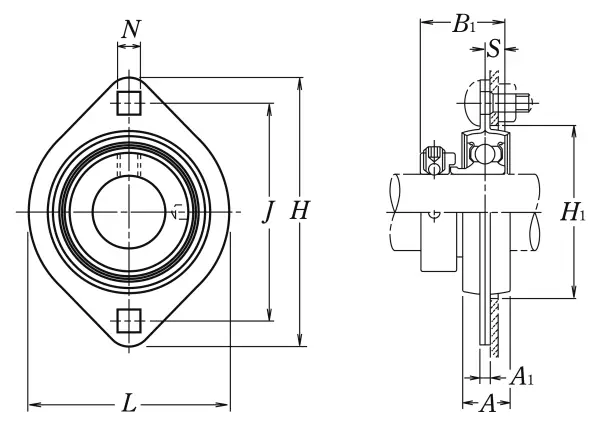

Nominal Dimensions
d
25
mm
Bore diameter
L,L1
71
mm
Overall height
H
95
mm
Height of spherical seat centre
J
76
mm
Distance between attachment bolts
N
9
mm
Diameter of attachment bolt hole
A1
4
mm
Flange width
A
18
mm
Base width
B,B1,B2
31
mm
Width of inner ring
H1
60
mm
Abutment diameter
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M 8
Bolt size
Permissible housing load
CR
4
kN
Radial
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
