NSK AELPP205
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
AELPP205
Included products
Bearing
Housing
PP205
Housing

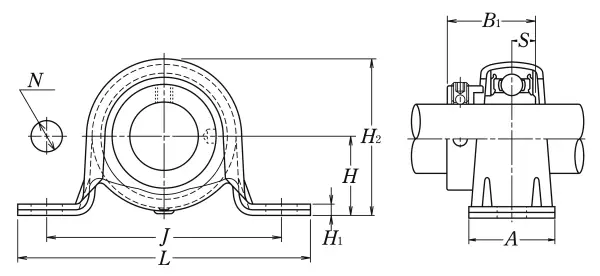

Nominal Dimensions
d
25
mm
Bore diameter
L
108
mm
Overall length
H
28.6
mm
Height of spherical seat centre
J
86
mm
Distance between attachment bolts
N
11.5
mm
Diameter of attachment bolt hole
A
32
mm
Base width
H1
4
mm
Distance between bottoms of piloting grooves
B1
31
mm
Width of inner ring
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
H2
56.6
mm
Overall height
Mounting information
G
M10
Bolt size
Permissible housing load
CR
3.5
kN
Radial
CA
1.4
kN
Axial
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
