NSK AELRPP206
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
AELRPP206
Included products
Bearing
Housing
PP207
Housing
Rubber ring
R206
Rubber ring

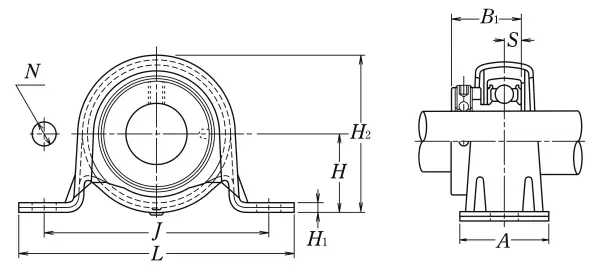

Nominal Dimensions
d
30
mm
Bore diameter
L
129
mm
Overall length
H
39.7
mm
Height of spherical seat centre
J
106
mm
Distance between attachment bolts
N
11.5
mm
Diameter of attachment bolt hole
A
42
mm
Base width
H1
4.6
mm
Distance between bottoms of piloting grooves
B1
35.7
mm
Width of inner ring
S
9
mm
Distance from Opposite side face of locking device to raceway centre
H2
78
mm
Overall height
Mounting information
G
M10
Bolt size
Permissible housing load
CR
1.5
kN
Radial
CA
0.2
kN
Axial
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
