NSK AH2332
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AH2332
Associated products
Nut

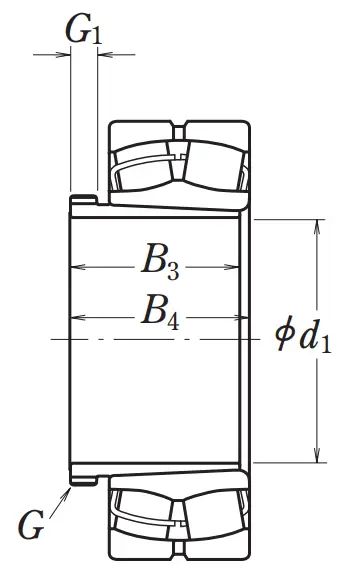

Dimensions
d1
150
mm
Shaft diameter
d
160
mm
Nominal bore diameter
B3
140
mm
Width of withdrawal sleeve
B4
146
mm
Width sleeve and bearing before sleeve is driven into bore
G
M180x3
Screw thread
G1
24
mm
Length thread
Mass
Mass
4.7
kg
Mass (approx.)
