NSK AH24080
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AH24080

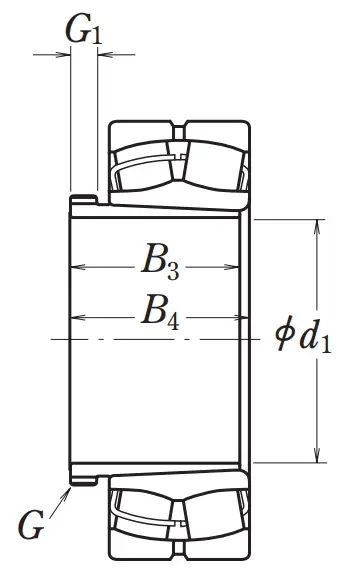

Dimensions
d1
380
mm
Shaft diameter
d
400
mm
Nominal bore diameter
B3
228
mm
Width of withdrawal sleeve
B4
248
mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr420x5
Screw thread
G1
28
mm
Length thread
Mass
Mass
28
kg
Mass (approx.)
