NSK AH3264
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AH3264
Associated products
Nut

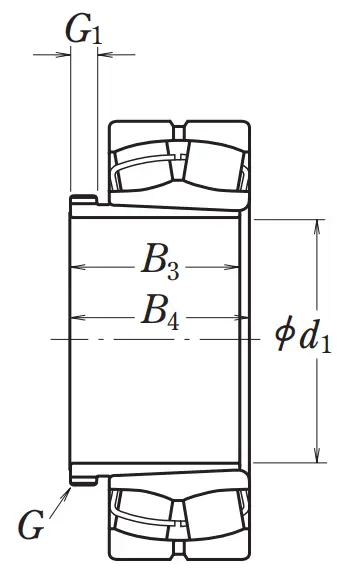

Dimensions
d1
300
mm
Shaft diameter
d
320
mm
Nominal bore diameter
B3
246
mm
Width of withdrawal sleeve
B4
254
mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr350x5
Screw thread
G1
36
mm
Length thread
Mass
Mass
25
kg
Mass (approx.)
