NSK AH3280
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AH3280
Associated products
Nut

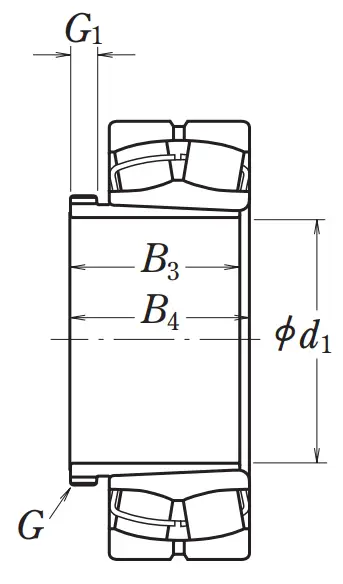

Dimensions
d1
380
mm
Shaft diameter
d
400
mm
Nominal bore diameter
B3
302
mm
Width of withdrawal sleeve
B4
312
mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr440x5
Screw thread
G1
44
mm
Length thread
Mass
Mass
51.5
kg
Mass (approx.)
