NSK AHX2310
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AHX2310
Associated products
Nut

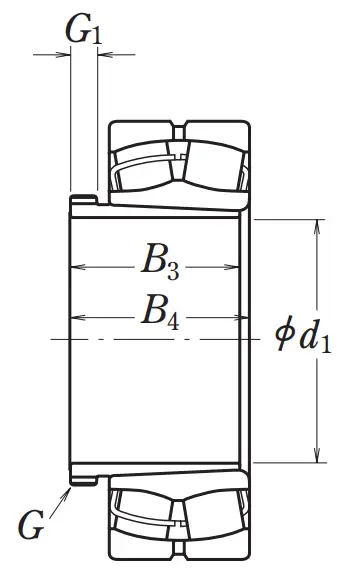

Dimensions
d1
45
mm
Shaft diameter
d
50
mm
Nominal bore diameter
B3
50
mm
Width of withdrawal sleeve
B4
53
mm
Width sleeve and bearing before sleeve is driven into bore
G
M55x2
Screw thread
G1
9
mm
Length thread
Mass
Mass
0.235
kg
Mass (approx.)
