NSK AHX311
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AHX311
Associated products
Nut

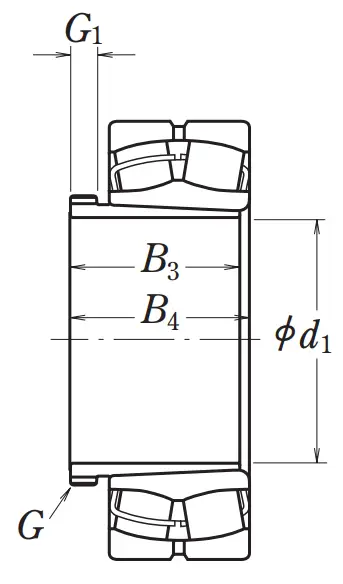

Dimensions
d1
50
mm
Shaft diameter
d
55
mm
Nominal bore diameter
B3
37
mm
Width of withdrawal sleeve
B4
40
mm
Width sleeve and bearing before sleeve is driven into bore
G
M60x2
Screw thread
G1
7
mm
Length thread
Mass
Mass
0.19
kg
Mass (approx.)
