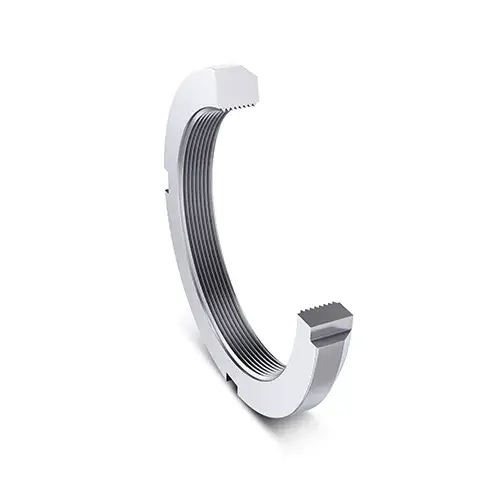

NSK AN19
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AN19
Associated products
Lock-Washer
Shaft diameter (Reference)
d
95
mm
Shaft diameter (Reference)

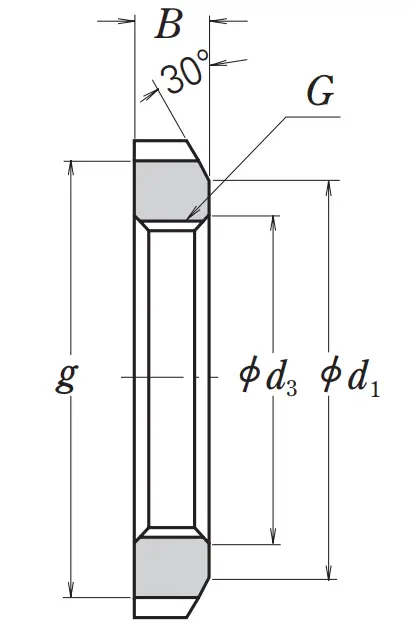

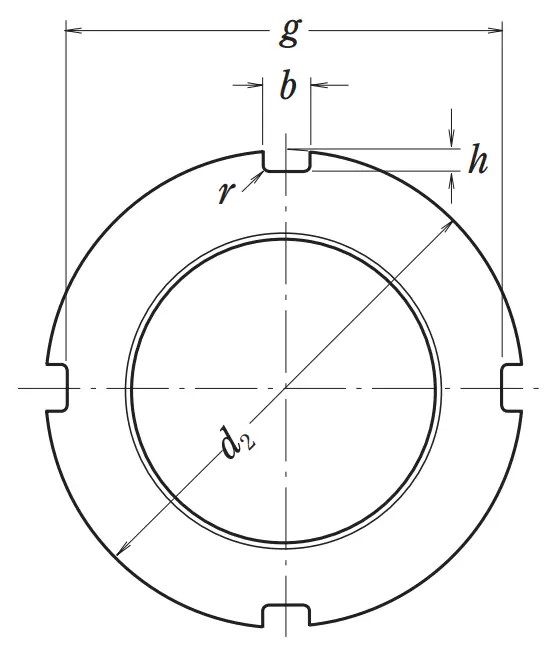

Basic Dimensions
d2
125
mm
Outside diameter lock nut
B
17
mm
Width lock nut
G
M95x2
Thread size
d1
113
mm
Diameter locating side face
g
117
mm
Distance between locating slots
b
10
mm
Width locating slot
h
4
mm
Depth locating slot
d3
96
mm
Thread diameter
r
0.6
mm
Locating slot chanfer
Mass
Mass
0.66
kg
Mass (approx.)
