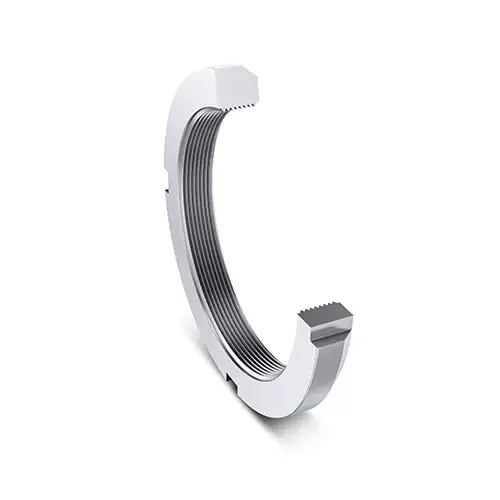

NSK AN30
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AN30
Associated products
Lock-Washer
Shaft diameter (Reference)
d
150
mm
Shaft diameter (Reference)

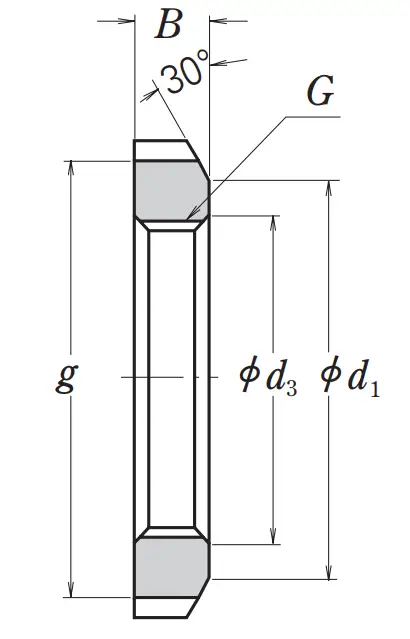

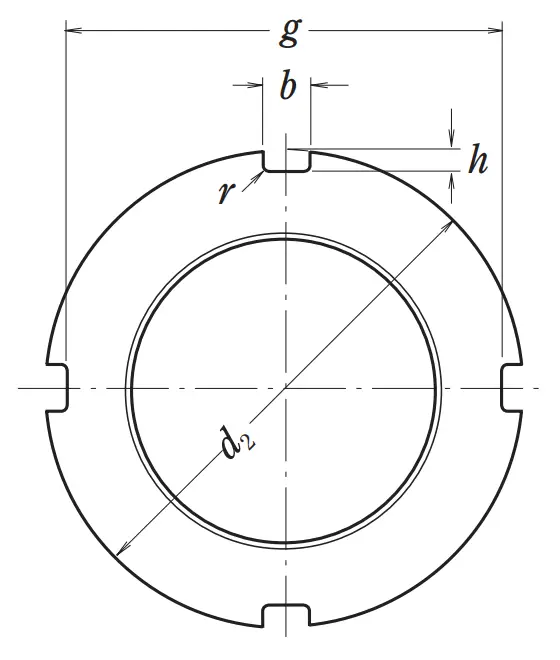

Basic Dimensions
d2
195
mm
Outside diameter lock nut
B
24
mm
Width lock nut
G
M150x2
Thread size
d1
171
mm
Diameter locating side face
g
183
mm
Distance between locating slots
b
14
mm
Width locating slot
h
6
mm
Depth locating slot
d3
151
mm
Thread diameter
r
0.7
mm
Locating slot chanfer
Mass
Mass
2.03
kg
Mass (approx.)
