NSK AN31
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AN31
Shaft diameter (Reference)
d
155
mm
Shaft diameter (Reference)

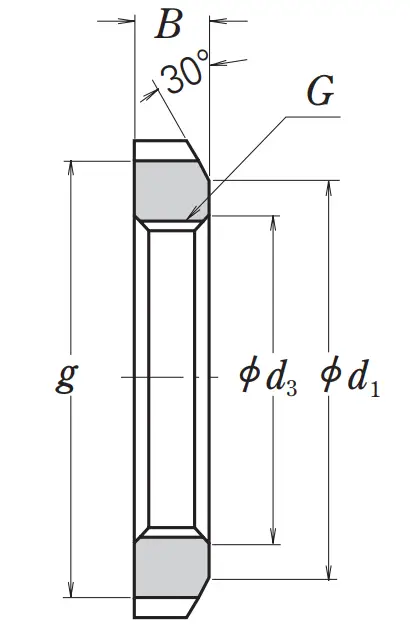

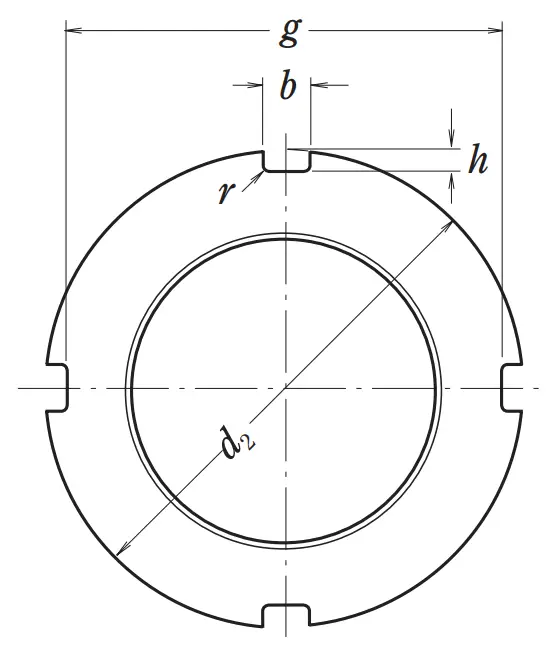

Basic Dimensions
d2
200
mm
Outside diameter lock nut
B
25
mm
Width lock nut
G
M155x3
Thread size
d1
182
mm
Diameter locating side face
g
186
mm
Distance between locating slots
b
16
mm
Width locating slot
h
7
mm
Depth locating slot
d3
156.5
mm
Thread diameter
r
0.7
mm
Locating slot chanfer
Mass
Mass
2.21
kg
Mass (approx.)
