NSK AN44
Nut
(BRAND)：NSK
(Availability)：In Stock
Designations
AN44
Associated products
Stopper
Shaft diameter (Reference)
d
220
mm
Shaft diameter (Reference)
Basic Dimensions
d2
280
mm
Outside diameter lock nut
B
32
mm
Width lock nut
G
Tr220x4
Thread size
d1
250
mm
Diameter locating side face
g
260
mm

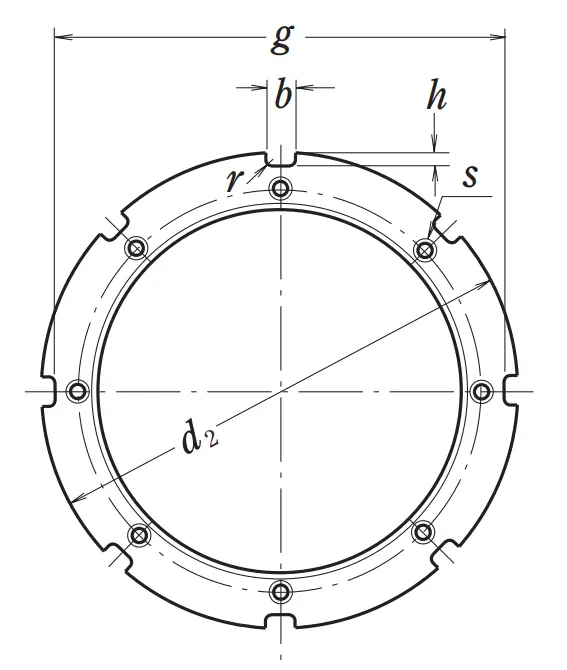

Distance between locating slots
b
20
mm
Width locating slot
h
10
mm
Depth locating slot
d3
222
mm
Thread diameter
r
0.8
mm
Locating slot chanfer

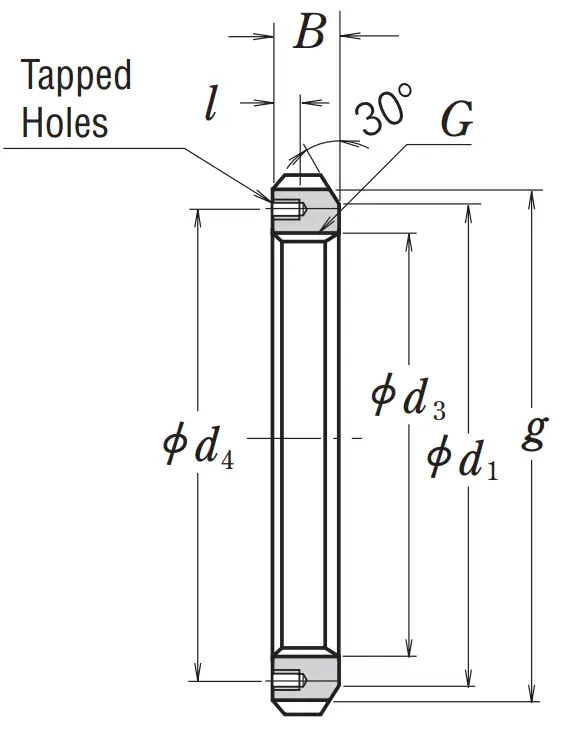

Tapped Holes
l
15
mm
Depth of thread hole
(S)
M8×1.25
Screw Thread
d4
238
mm
Pitch diameter of thread hole
