NSK AN48
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AN48
Associated products
Stopper
Shaft diameter (Reference)
d
240
mm
Shaft diameter (Reference)

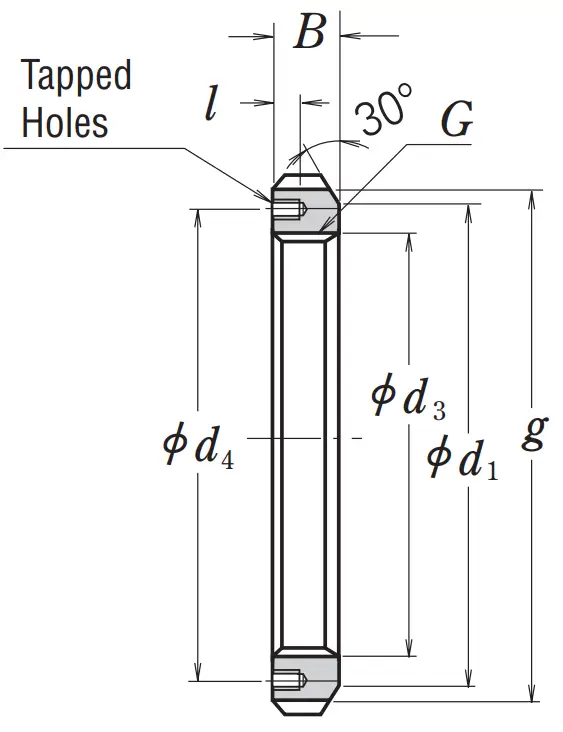

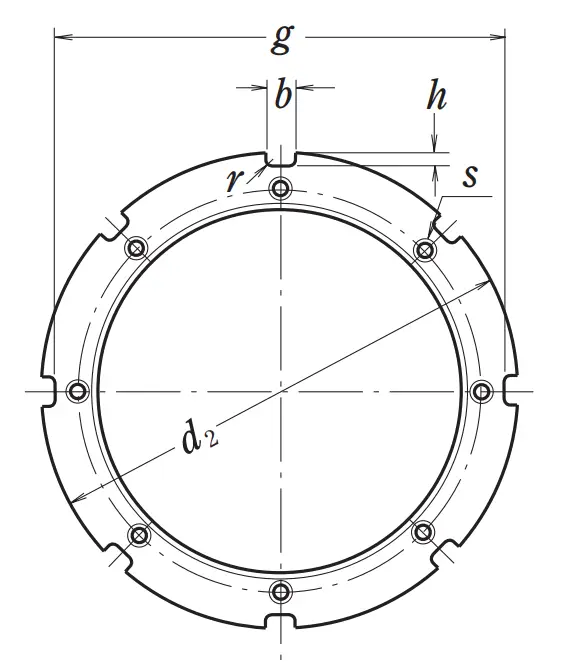

Basic Dimensions
d2
300
mm
Outside diameter lock nut
B
34
mm
Width lock nut
G
Tr240x4
Thread size
d1
270
mm
Diameter locating side face
g
280
mm
Distance between locating slots
b
20
mm
Width locating slot
h
10
mm
Depth locating slot
d3
242
mm
Thread diameter
r
0.8
mm
Locating slot chanfer
Tapped Holes
l
15
mm
Depth of thread hole
(S)
M8×1.25
Screw Thread
d4
258
mm
Pitch diameter of thread hole
