NSK AN52
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AN52
Associated products
Stopper
Shaft diameter (Reference)
d
260
mm
Shaft diameter (Reference)

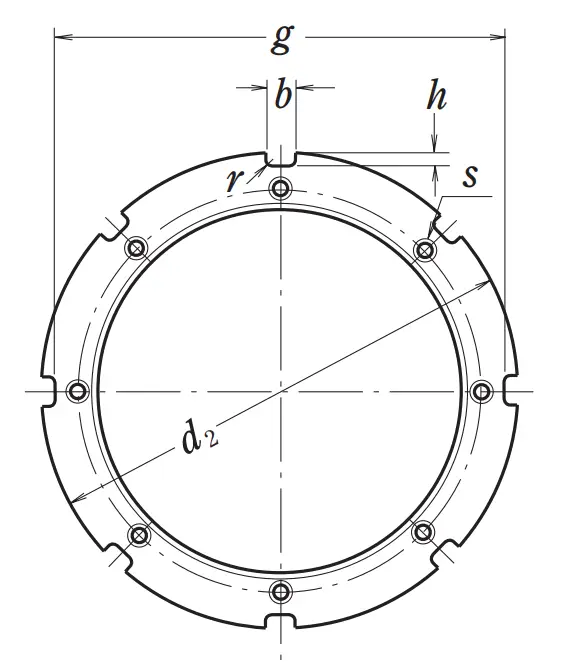

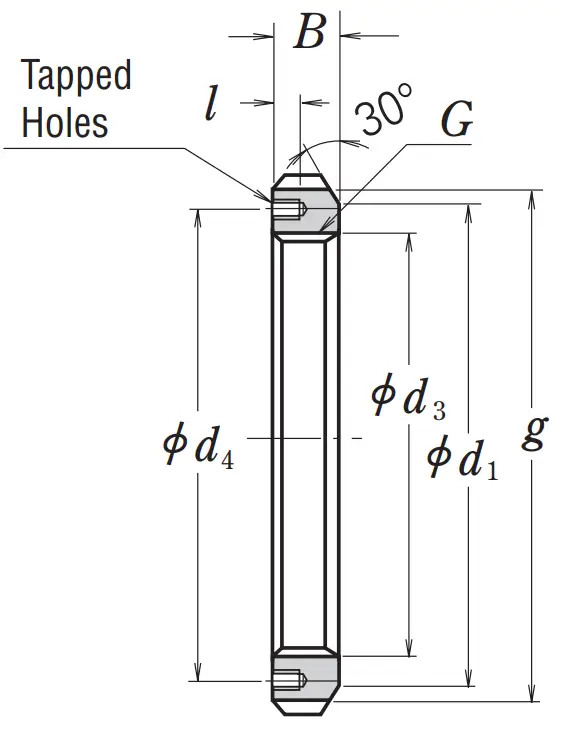

Basic Dimensions
d2
330
mm
Outside diameter lock nut
B
36
mm
Width lock nut
G
Tr260x4
Thread size
d1
300
mm
Diameter locating side face
g
306
mm
Distance between locating slots
b
24
mm
Width locating slot
h
12
mm
Depth locating slot
d3
262
mm
Thread diameter
r
0.8
mm
Locating slot chanfer
Tapped Holes
l
18
mm
Depth of thread hole
(S)
M10×1.5
Screw Thread
d4
281
mm
Pitch diameter of thread hole
