NSK AN68
Nut
(BRAND)：NSK
(Availability)：In Stock
Designations
AN68
Associated products
Stopper
Shaft diameter (Reference)
d
340
mm
Shaft diameter (Reference)

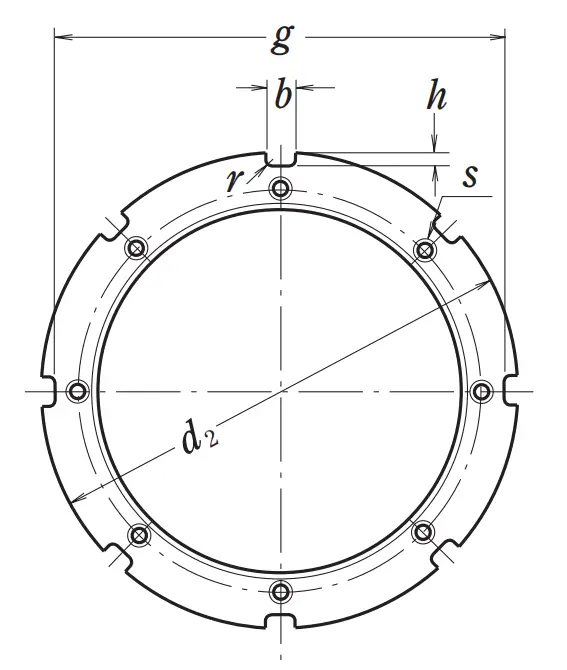

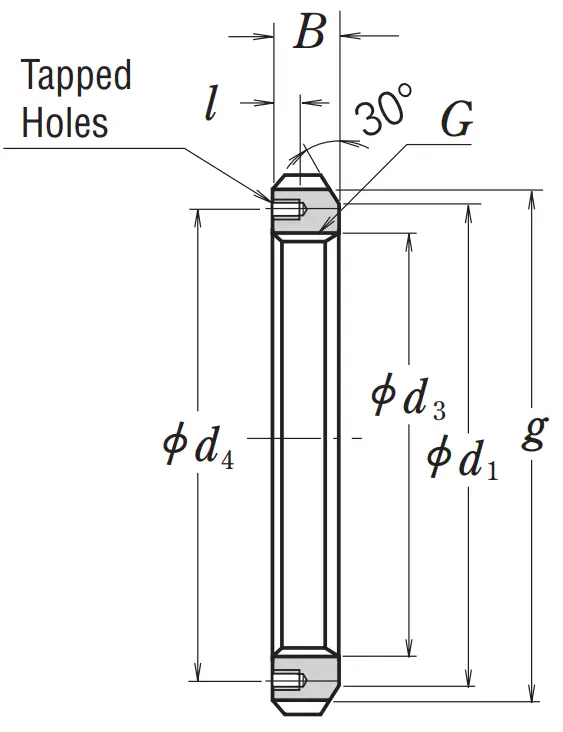

Basic Dimensions
d2
440
mm
Outside diameter lock nut
B
55
mm
Width lock nut
G
Tr340x5
Thread size
d1
400
mm
Diameter locating side face
g
410
mm
Distance between locating slots
b
28
mm
Width locating slot
h
15
mm
Depth locating slot
d3
342.5
mm
Thread diameter
r
1
mm
Locating slot chanfer
Tapped Holes
l
21
mm
Depth of thread hole
(S)
M12×1.75
Screw Thread
d4
372
mm
Pitch diameter of thread hole
