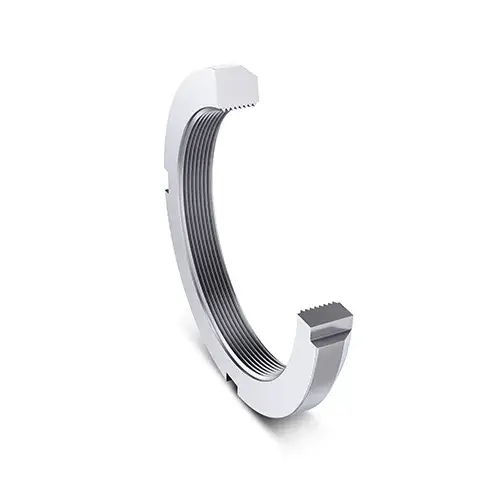

NSK ANL28
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ANL28
Associated products
Lock-Washer
Shaft diameter (Reference)
d
140
mm
Shaft diameter (Reference)

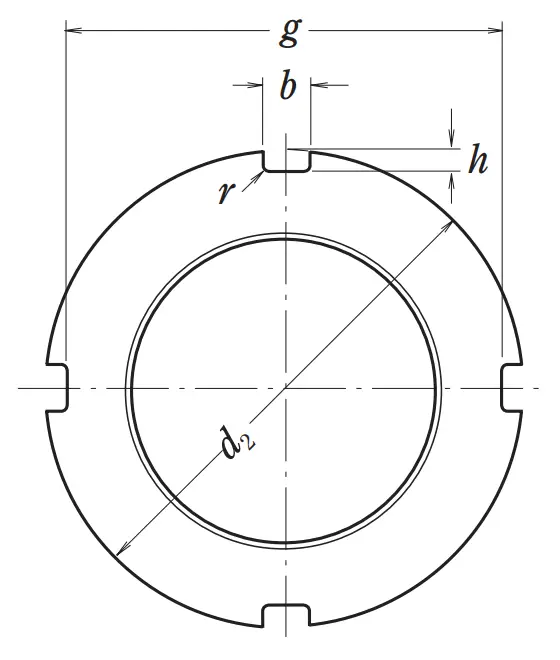

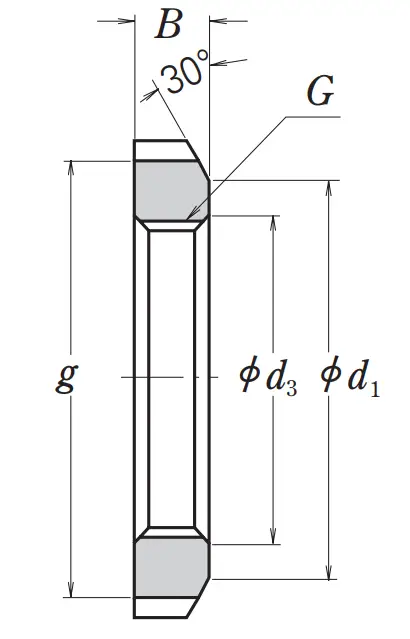

Basic Dimensions
d2
165
mm
Outside diameter lock nut
B
22
mm
Width lock nut
G
M140x2
Thread size
d1
151
mm
Diameter locating side face
g
153
mm
Distance between locating slots
b
14
mm
Width locating slot
h
6
mm
Depth locating slot
d3
141
mm
Thread diameter
r
0.7
mm
Locating slot chanfer
Mass
Mass
0.99
kg
Mass (approx.)
