NSK ANL52
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ANL52
Associated products
Stopper
Shaft diameter (Reference)
d
260
mm
Shaft diameter (Reference)

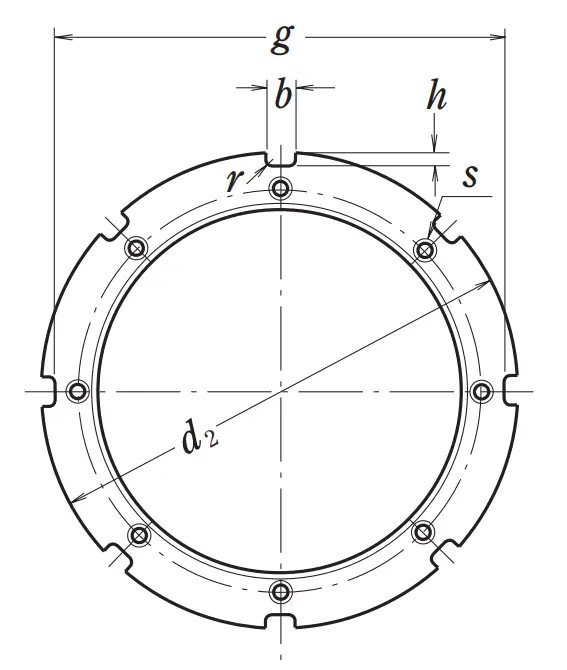

Basic Dimensions
d2
310
mm
Outside diameter lock nut
B
34
mm
Width lock nut
G
Tr260x4
Thread size
d1
290
mm
Diameter locating side face
g
290
mm
Distance between locating slots
b
20
mm
Width locating slot
h
10
mm
Depth locating slot
d3
262
mm
Thread diameter
r
0.8
mm
Locating slot chanfer
Tapped Holes
l
15
mm
Depth of thread hole
(S)
M8×1.25
Screw Thread
d4
273
mm
Pitch diameter of thread hole
