NSK ANL56
Nut
(BRAND)：NSK
(Availability)：In Stock
Designations
ANL56
Associated products
Stopper
Shaft diameter (Reference)
d
280
mm
Shaft diameter (Reference)
Basic Dimensions
d2
330
mm
Outside diameter lock nut
B
38
mm
Width lock nut
G
Tr280x4
Thread size
d1
310
mm
Diameter locating side face
g
310
mm

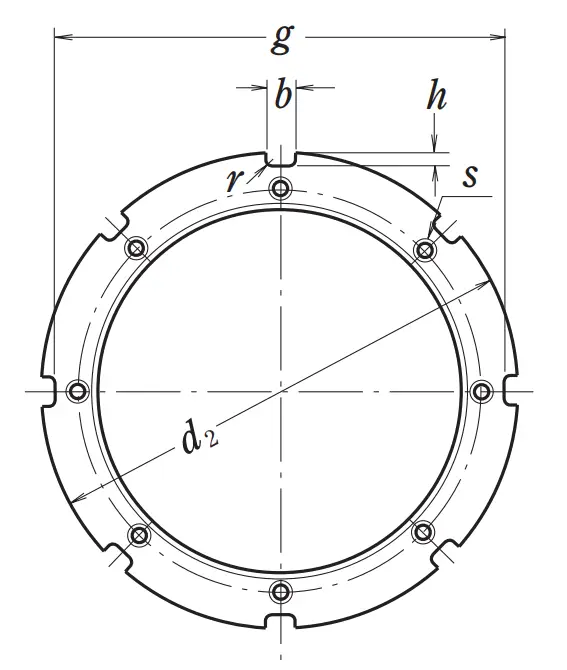

Distance between locating slots
b
24
mm
Width locating slot
h
10
mm
Depth locating slot
d3
282
mm
Thread diameter
r
0.8
mm
Locating slot chanfer

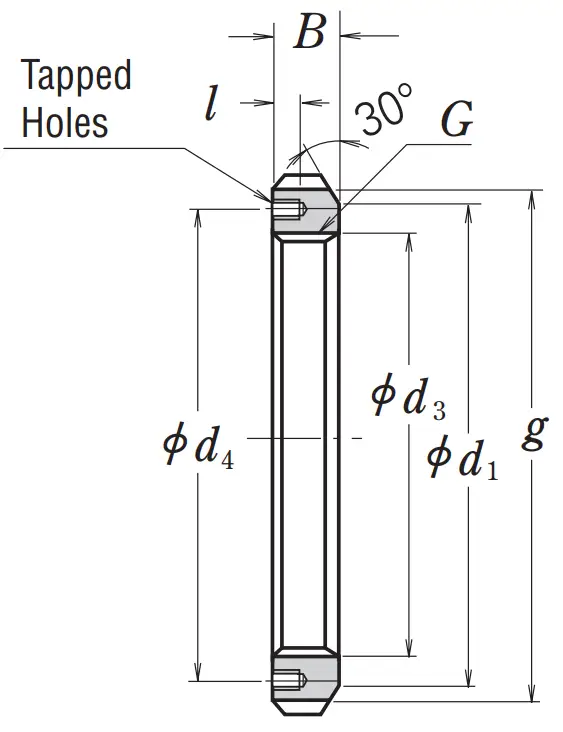

Tapped Holes
l
15
mm
Depth of thread hole
(S)
M8×1.25
Screw Thread
d4
293
mm
Pitch diameter of thread hole
