NSK ANL60
Nut
(BRAND)：NSK
(Availability)：In Stock
Designations
ANL60
Associated products
Stopper
Shaft diameter (Reference)
d
300
mm
Shaft diameter (Reference)

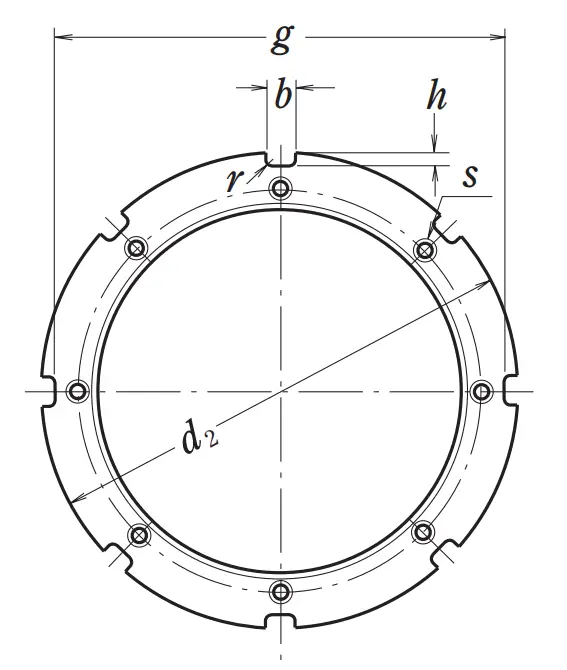

Basic Dimensions
d2
360
mm
Outside diameter lock nut
B
42
mm
Width lock nut
G
Tr300x4
Thread size
d1
336
mm
Diameter locating side face
g
336
mm
Distance between locating slots
b
24
mm
Width locating slot
h
12
mm
Depth locating slot
d3
302
mm
Thread diameter
r
0.8
mm
Locating slot chanfer
Tapped Holes
l
15
mm
Depth of thread hole
(S)
M8×1.25
Screw Thread
d4
316
mm
Pitch diameter of thread hole
