NSK ANL68
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ANL68
Associated products
Stopper
Shaft diameter (Reference)
d
340
mm
Shaft diameter (Reference)

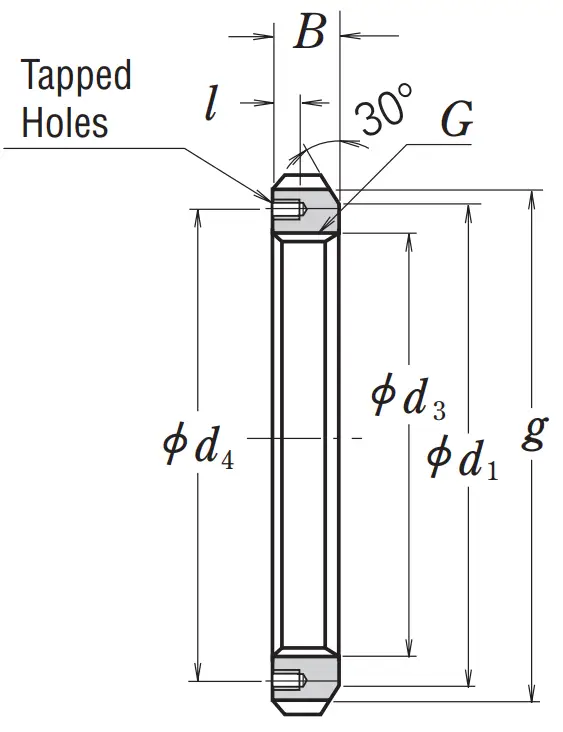

Basic Dimensions
d2
400
mm
Outside diameter lock nut
B
45
mm
Width lock nut
G
Tr340x5
Thread size
d1
376
mm
Diameter locating side face
g
376
mm
Distance between locating slots
b
24
mm
Width locating slot
h
12
mm
Depth locating slot
d3
342.5
mm
Thread diameter
r
1
mm
Locating slot chanfer
Tapped Holes
l
15
mm
Depth of thread hole
(S)
M8×1.25
Screw Thread
d4
355
mm
Pitch diameter of thread hole
