NSK ANL84
Nut
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ANL84
Associated products
Stopper
Shaft diameter (Reference)
d
420
mm
Shaft diameter (Reference)

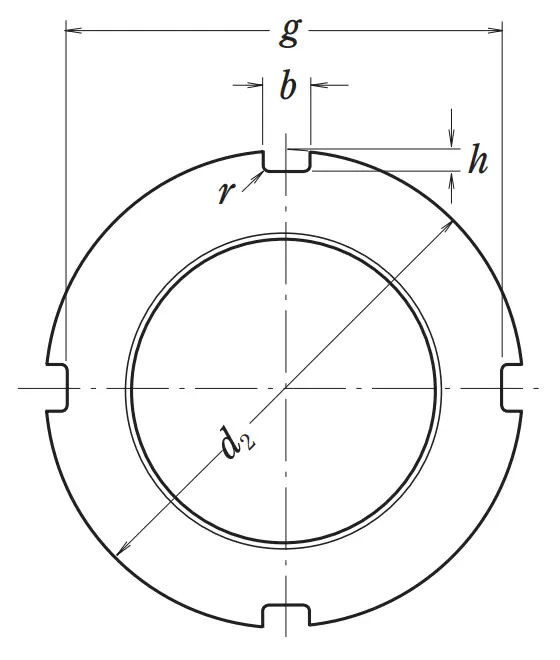

Basic Dimensions
d2
490
mm
Outside diameter lock nut
B
52
mm
Width lock nut
G
Tr420x5
Thread size
d1
462
mm
Diameter locating side face
g
462
mm
Distance between locating slots
b
32
mm
Width locating slot
h
14
mm
Depth locating slot
d3
422.5
mm
Thread diameter
r
1
mm
Locating slot chanfer
Tapped Holes
l
18
mm
Depth of thread hole
(S)
M10×1.5
Screw Thread
d4
438
mm
Pitch diameter of thread hole
