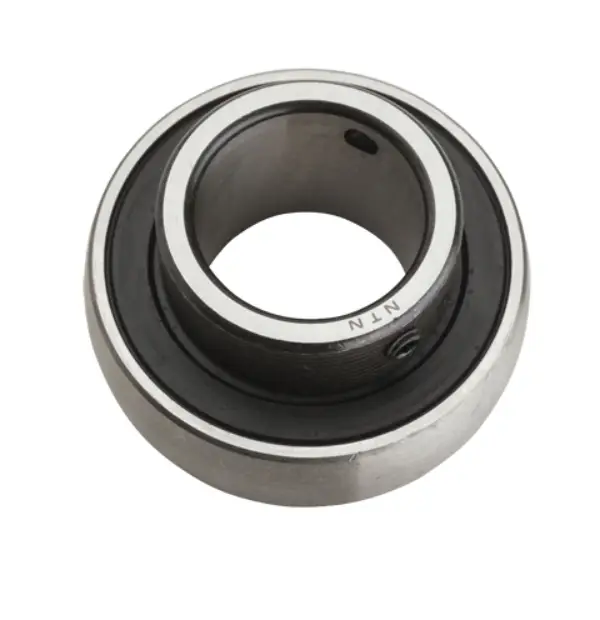

NSK AS206
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AS206
Included products
Bearing

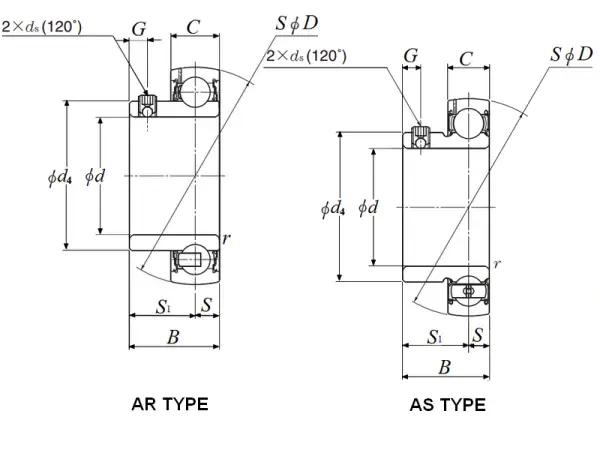

Nominal Dimensions
d
30
mm
Bore diameter
D
62
mm
Outside diameter
B,B4
29
mm
Width of inner ring
C
16
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
S1
21
mm
Distance from locking device side face to raceway centre
G
5
mm
Distance face to thread centre
ds
M6×0.75
Set screw
d4
40.8
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
Mass approx.
0.25
kg
Mass approx.
