NSK ASPB201
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ASPB201
Included products
Bearing
Housing
PB201
Housing

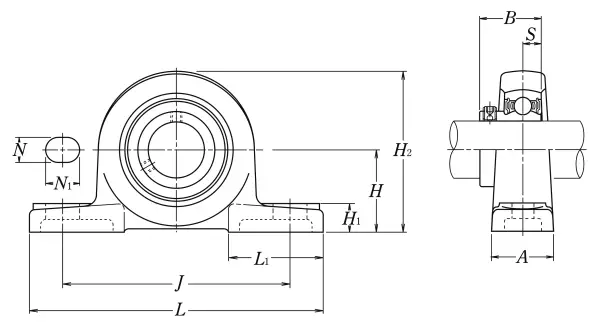

Nominal Dimensions
d
12
mm
Bore diameter
N1
16
mm
Length of attachment bolt hole
L
114
mm
Overall length
H
30.2
mm
Height of spherical seat centre
J
87
mm
Distance between attachment bolts
N
11
mm
Diameter of attachment bolt hole
A
25
mm
Base width
H1
12
mm
Distance between bottoms of piloting grooves
B
22
mm
Width of inner ring
S
6
mm
Distance from Opposite side face of locking device to raceway centre
L1
38
mm
Foot width
H2
57
mm
Overall height
Mounting information
G
M 8
Bolt size
Basic Load Ratings
Cr
9.6
kN
Basic dynamic load rating
C0r
4.6
kN
Basic static load rating
Mass
mass
0.4
kg
Mass approx.
