NSK ASPFL206
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ASPFL206
Included products
Bearing
Housing
PFL206
Housing

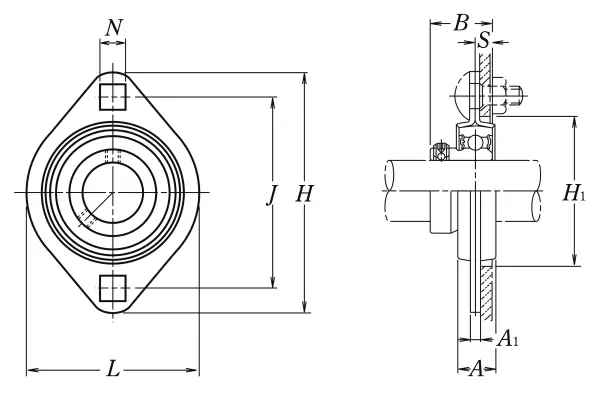

Nominal Dimensions
d
30
mm
Bore diameter
L,L1
84
mm
Overall height
H
113
mm
Height of spherical seat centre
J
90.5
mm
Distance between attachment bolts
N
11
mm
Diameter of attachment bolt hole
A1
5.2
mm
Flange width
A
18
mm
Base width
B,B1,B2
29
mm
Width of inner ring
H1
71
mm
Abutment diameter
S
8
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Permissible housing load
CR
5
kN
Radial
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
