NSK ASPFL208
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ASPFL208
Included products
Bearing
Housing
PFL208
Housing

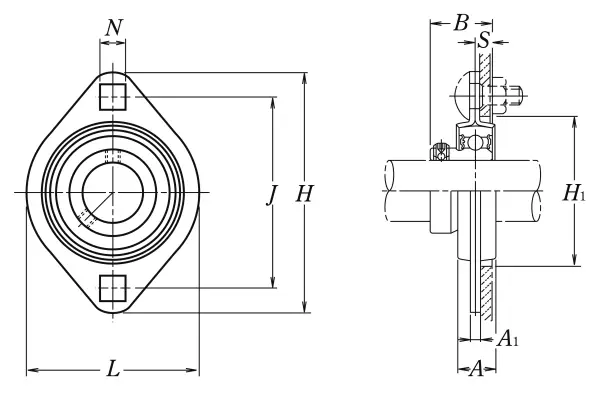

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
100
mm
Overall height
H
148
mm
Height of spherical seat centre
J
119
mm
Distance between attachment bolts
N
13.5
mm
Diameter of attachment bolt hole
A1
6.8
mm
Flange width
A
21
mm
Base width
B,B1,B2
38
mm
Width of inner ring
H1
91
mm
Abutment diameter
S
9
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M12
Bolt size
Permissible housing load
CR
6
kN
Radial
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
