NSK ASPP202
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ASPP202
Included products
Bearing
Housing
PP203
Housing

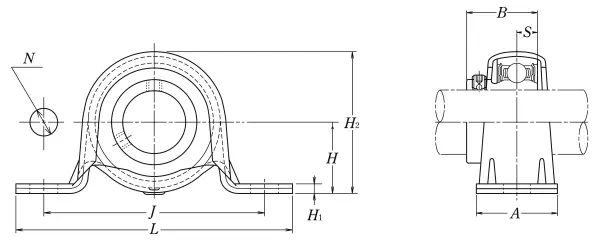

Nominal Dimensions
d
15
mm
Bore diameter
L
86
mm
Overall length
H
22.2
mm
Height of spherical seat centre
J
68
mm
Distance between attachment bolts
N
9.5
mm
Diameter of attachment bolt hole
A
25
mm
Base width
H1
3.2
mm
Distance between bottoms of piloting grooves
B
22
mm
Width of inner ring
S
6
mm
Distance from Opposite side face of locking device to raceway centre
H2
43.8
mm
Overall height
Mounting information
G
M 8
Bolt size
Basic Load Ratings
Cr
9.6
kN
Basic dynamic load rating
C0r
4.6
kN
Basic static load rating
Mass
mass
0.2
kg
Mass approx.
