NSK ASPP205
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ASPP205
Included products
Bearing
Housing
PP205
Housing

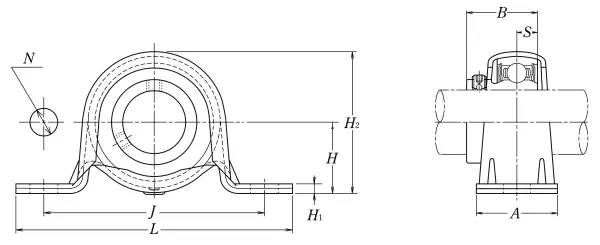

Nominal Dimensions
d
25
mm
Bore diameter
L
108
mm
Overall length
H
28.6
mm
Height of spherical seat centre
J
86
mm
Distance between attachment bolts
N
11.5
mm
Diameter of attachment bolt hole
A
32
mm
Base width
H1
4
mm
Distance between bottoms of piloting grooves
B
27
mm
Width of inner ring
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
H2
56.6
mm
Overall height
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.3
kg
Mass approx.
