NSK ASPP207
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ASPP207
Included products
Bearing
Housing
PP207
Housing

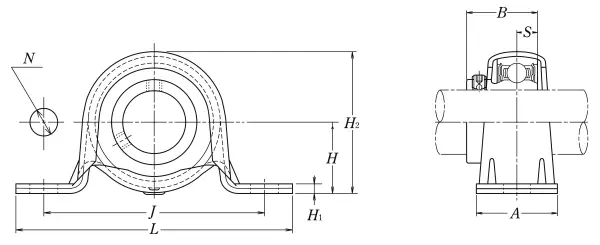

Nominal Dimensions
d
35
mm
Bore diameter
L
129
mm
Overall length
H
39.7
mm
Height of spherical seat centre
J
106
mm
Distance between attachment bolts
N
11.5
mm
Diameter of attachment bolt hole
A
42
mm
Base width
H1
4.6
mm
Distance between bottoms of piloting grooves
B
34
mm
Width of inner ring
S
8.5
mm
Distance from Opposite side face of locking device to raceway centre
H2
78
mm
Overall height
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
0.6
kg
Mass approx.
