NSK ASS204N
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ASS204N
Included products
Bearing

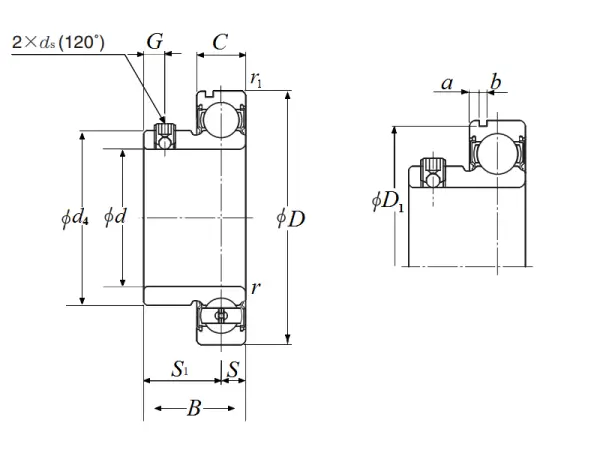

Nominal Dimensions
d
20
mm
Bore diameter
D
47
mm
Outside diameter
B,B4
25
mm
Width of inner ring
C
14
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
r1(min.)
0.6
mm
Chamfer dimension
S1
18
mm
Distance from locking device side face to raceway centre
G
4.2
mm
Distance face to thread centre
ds
M5×0.8
Set screw
d4
29.6
mm
Outside diameter of inner ring
D1
44.6
mm
Diameter of snap ring groove
a
2.38
mm
Distance outer ring from side face to snap ring groove
b
1.5
mm
Width of snap ring groove
Basic Load Ratings
Cr
12.8
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
Mass
Mass approx.
0.17
kg
Mass approx.
